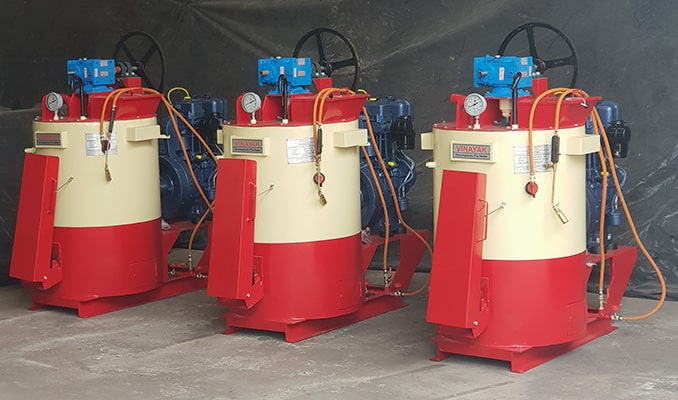

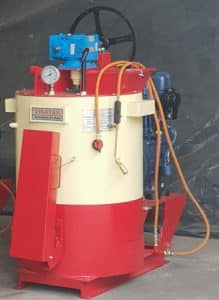

Our Thermoplastic pre-Heater is chiefly utilized for heating, melting and moving thermoplastic marking paints constantly providing hot melted paints for the thermoplastic road marking machine while performing the long distance road marking task. This machine can be called as the accessory of thermoplastic road marking machine.
This equipment is prepared from finest quality of raw material and is manufactured in as per the international quality standards. It is also known as Hot Melt Kettle or Thermoplastic Pre-melted Machine or Pre-Heater Boiler.
Our qualitative machine is extensively accredited by the traders in the market as well as our clients due to their outstanding characteristics such as robustness, least maintenance cost, and easy installation and operation wherever required, high and fast performance and longer life span. Quality at affordable rate is our chief specialty
SALIENT FEATURES
- Has a built-in Diesel Engine to assist continuous stirring to obtain homogeneous molten thermoplastic.
- The system is heated with the help of LPG, with a heavy duty, high pressure redial burners which are of the highest standard accessible in heating industry.
- Oil Jacketed Thermoplastic Pre heaters, have a capacity of 500 Kg.
- Single Unit is produced with a tremendous high standard, to tolerate nonstop workload demanded by Road Marketing Contractors.
- It can be operated incessantly for 8-10 hours.
- This makes a feeder vehicle to a hand propelled or automatic applicator to produce 500 sq. m. markings per day.
- All pipes have valves and regulators that are simple in usage.
- Hand torch is built-in for trouble-free operation.

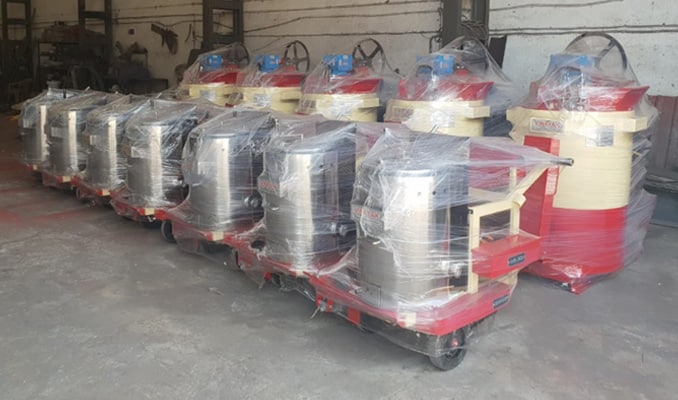

- Equipment is skid mounted and can be transported with the help of a mini truck.
Thermoplastic Pre Heaters Manufacturer
Descriptions
- Thermoplastic pre heater with 500kg Capacity, with thermal fluid heater (Oil Jacketed)
- Vertical type mechanical agitation, has horizontal & vertical steel agitation blades
- Water cooled 13HP. Diesel engine, attached with reduction gear box.
- Has a heat eliminating glass wool instillation on the outer portion
- Separate temperature gauges for heating temperature & Paint temperature.
- 5 Nos. high pressure radial burners, hand torch, regulators, Pressure gauges, tool boxes & other standard attachments

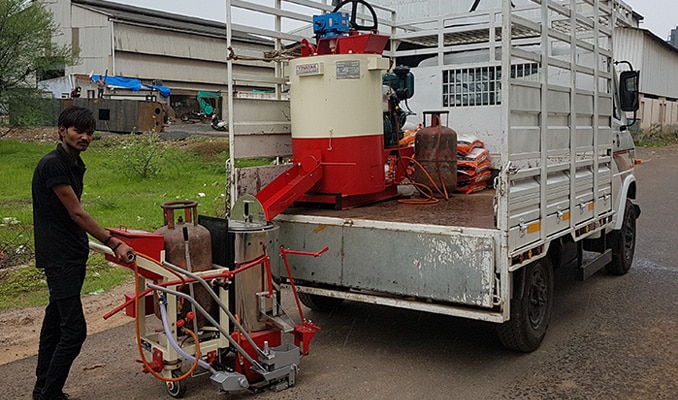

- Skid mounted can be transported or mounted on a mini truck, ideal for long-lasting as well as incessant agitation of paint
TECHNICAL SPECIFICATION
- Dimension: L 1500 * W 1200 * H 1600 mm
- Weight: Dry Weight 1100 Kg
- Power Transmission: Reduction Gear
- Engine: Water Cooled Diesel Engine
- Burner: 5 Nos. High Pressure Radial Burners
